i1Basic Pro 2
Modelo n.º : eo2bas

i1Basic Pro 2

Fuera de producción

i1Basic Pro 2 es el estándar de la industria para una solución de medición del color espectral accesible, de nivel profesional que incluye creación de perfiles de pantalla y proyector, y control de calidad de la impresión.



Request Service
Register Your Product

Descargas

Software

Artículos de soporte

Guías de usuario y manuales

Guía de Usuario

Especificaciones

Repetitividad de corto plazo: blanco Reflectance: 0.1 ∆E94*  (D50,2°, mean of 10 measurements every 3 seconds on white)
Geometría de medición 45°/0° ring illumination optics, ISO 13655:2009
Acuerdo entre instrumentos 0.4 ∆E94* average, 1.0 ∆E94* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))
Tamaño del área de iluminación 3.5 mm (0.14”)
Fuente de luz Gas filled tungsten (illuminant type A) and UV LED
Condiciones de medición • UV included - ISO 13655:2009 measurement condition M0
• D50 - ISO 13655:2009 measurement condition M1
• UV excluded Filter - ISO 13655:2009 measurement condition M2
Frecuencia de la medición en el modo de escaneo 200 measurements per second
Espesor mínimo de medios 3 mm (0.12”) on backup board
Tamaño del parche Minimal Patch Size in Scanning Mode: 7 x 10 mm (0.28” x 0.39”) (Width x Height) with sensor ruler 10 x 10 mm (0.39” x 0.39”) (Width x Height) without sensor ruler
Rango fotométrico 10nm; Sampling interval 3.5nm
Analizador de espectro i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
Intervalo espectral 380 - 730 nm
Presentación del espectro 380 ... 730 nm in 10 nm steps
Formato de perfil compatible ICC
Apertura Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Unité de couleur Silver/Black
Dimensiones (largo, ancho, alto) i1Pro device: 155 mm x 66 mm x 67 mm (6.1” x 2.6” x 2.6”)
i1 Ruler: 337 mm x 102 mm (13.3” x 4.0”)
i1 Backup Board: 355 mm x 265 mm (14.0” x 10.4”) folded or 355 mm x 400 mm (14.0” x 15.7”) unfolded
Peso i1Pro device: 245 g (8.6 oz)
Dimensiones del paquete (largo, ancho, alto) 13.7" x 6.1" x 17.0" / 348 mm x 155 mm x 434 mm
Peso despachado 9.898 lbs / 4.490 kg
Interfaz de comunicación USB 1.1
Nivel de experiencia Intermediate to Advanced
Idiomas compatibles Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
Kit de desarrollo de software Available for OEM customers
Modos de software Basic & Advanced
Experiencia de usuario Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
Calibración Manual on external ceramic white reference
Fondo de medición white, ISO 13655:2009; for measurements on backup board
Compatibilidad con dispositivos móviles iOS
Compensación de abrillantadores ópticos Optical Brightener Compensation (OBC) with i1Profiler software
Garantía Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.

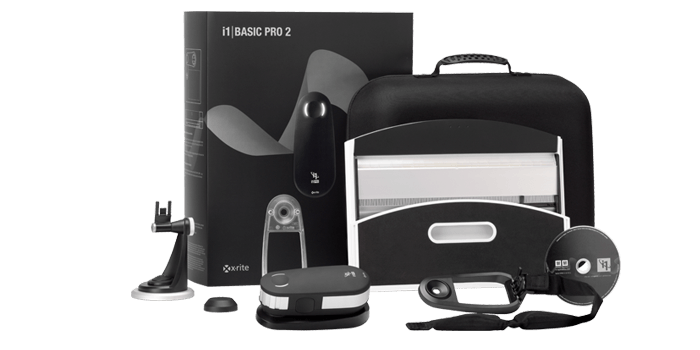

¿Qué incluye? i1Pro 2 spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, USB cable, i1Profiler v1.x software for monitor profiling plus QA for monitors and printers, PANTONE Color Manager software and soft-sided storage case. FreeColorTRUE mobile app download from iTunes® App Store.
Macintosh MacOS X 10.11x, 10.12x or 10.13x (with latest upgrades installed)
Windows Windows 7, 8, 8.1, 10 (with latest Service Pack installed)
Espacio en disco disponible 2GB
Conectividad Powered USB port

WINDOWS: Network adaptor installed and driver loaded
Resolución de la pantalla 1024x768 pixels or higher
Conexión a Internet Required for software install, download and automatic update
Memoria 2GB
Cantidad de pantallas admitidas por estación de trabajo 4
Unidad óptica DVD Drive or Internet Connection
Procesador MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better
Seguridad User must have Administrator rights to install and uninstall the application
Tarjeta de video MAC: Latest drivers for video card installed; WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
Dispositivos iOS compatibles Compatible with Free ColorTRUE Mobile App:
• iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
• iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
• iPod Touch running iOS 7.x or later
