N° de modèle : nghxra

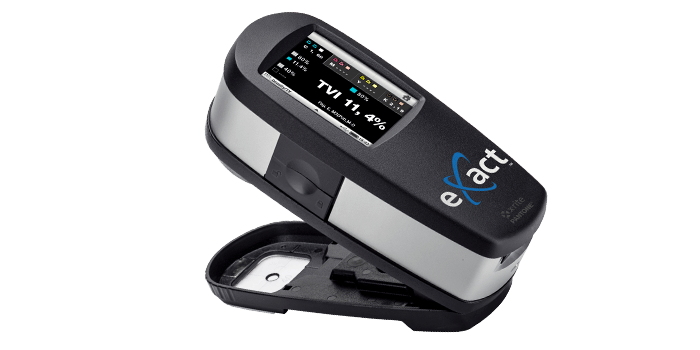

Densitomètre par réflexion eXact™ Basic Plus

Densitomètre avec succès/échec

As part of the larger eXact family of products, the eXact Basic Plus is the ideal choice for those who print CMYK in the pressroom and verify all aspects of density.





Guides de l’utilisateur et manuels



Fiche technique

Ouverture 1.5mm, 2mm, 4mm, 6mm
Batterie

Lithium Ion, 7.4VDC, 2200mAh

Caractéristique BestMatch No
Étalonnage Automatic on integrated white reference
Interface de communication USB 2.0; Bluetooth (optional) - Class II
Options de configuration BluetoothBluetooth; Xp edition for flexible packaging substrates
Connectivité USB 2.0; Bluetooth (not for Apple M1 and later systems)
Plage de densités 0.0 D – 3.0 D
Standards de densité Status A, E, I, T and G
Dimensions (longueur, largeur, hauteur) 18 cm x 7.8 cm x 7.6 cm
7.1" x 3.1" x  3.0"
Prise en charge intégrée de NetProfiler No
Certification G7 No
Humidité 30 to 85% RH (non-condensing)
Format d'importation/exportation CxF3
Standards de l'industrie ISO 5-4:2009(E), ISO 13655:2009
Affichage de l'instrument Color touch-screen, 320 x 240 pixels
Capteur interne de température et d'humidité Internal Temperature & Humidity Sensor
Langues prises en charge Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Slovenian, Spanish, Swedish, Turkish, Vietnamese
Source lumineuse Gas filled tungsten (illuminant type A) and UV LED
Macintosh eXact Manager, DataCatcher and Driver: macOS 10.13, 10.14, 10.15, 10.16 (also on Apple M1 systems), eXact DataMeasure: MacOS X 10.13, 10.14 (32bit only)
Conditions de mesure M0, M1 (part 1), M1 (part 2) , M2, M3; also available in Xp variant for flexible packaging substrates
Géométrie de mesure 45°/0° ring illumination optics, ISO 5-4:2009(E)
Durée de mesure < 1 sec
Prise en charge de NetProfiler No
Plage des températures de service 10°C to 35°C
50°F to 95°F
Prise en charge de PantoneLIVE Yes
Succès/Échec Yes
Indicateur de service Certification Reminder
Répétabilité à court terme - Densité "+/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D)"
Kit de développement logiciel

Yes

Modes logiciels Basic
Analyseur spectral DRS spectral engine
Intervalle spectral 10 nm
Plage spectrale 400 nm to 700 nm
Rapport spectral 400nm to 700nm with 10nm interval
Standards More than 20'000 standards (incl. data for all M modes)
Plage des températures de stockage -20° to 50°C
-4° to 122°F
Expérience utilisateur Start-up wizard, configurable, upgradable
Tension 12 VDC @ 2.5 A
Garantie 1 year
Poids  700 g
1.6 lbs.
Composants inclus USB cable, power supply, CD with software and documentation, docking/charging station, quick start guide, carrying case, device certificate
Windows Windows XP (32bit), Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit)
