모델 번호
ERX31
ERX31 Automotive Spectrophotometer
For Measurements on Automotive Interior Parts
- 45°:0° measurement geometry views color similar to the human eye
- Excellent long term stability ensures constant measurement results for many years
- Laboratory stand enables exact sample positioning
Overview
Spectral Range
Inter-Instrument Agreement
Device Geometry
![ERX31]()
![ERX31]()
Specifications
Support
Resources
Control Color in High Precision Environments
The ability to accurately and consistently measure color across a wide range of materials is critical in the automotive laboratory environment. The ERX31 spectrophotometer is well suited for applications where extreme precision and high resolution color measurement are needed to measure everything from buttons to panels including leather, plastic foils, metal, textiles, carpet and more.
1
nm
≤0.3
dL*, da*, db*
45°:0°
Objective Color Assessment in the Automotive Laboratory

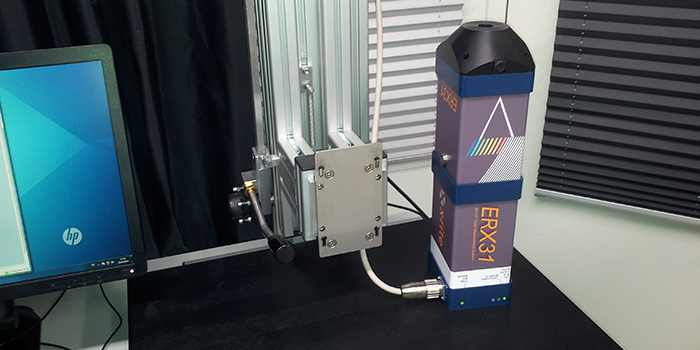

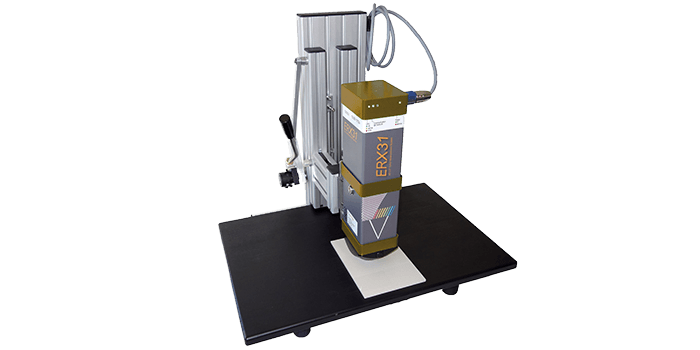

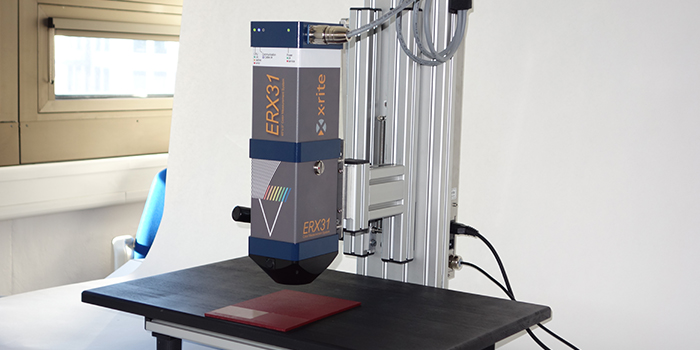

The ERX31 uses a special wavelength calibration to guarantee accurate absolute measurements now, tomorrow, and in many years. It can be mounted on a laboratory stand or used for portable applications. The triggering button captures fast and easy measurements, which is especially useful for averaging multiple measurements.
Measure Large and Small Samples with Precision
With a 45°:0° measurement geometry and 10mm diameter measurement area, the ERX31 views color in much the same way as the human eye. The ERX31 delivers true 1 nm spectral measurement resolution, excellent measurement accuracy, and long-term stability. Positioning is aided by illuminating the target space, helpful for targeting textured fabrics and small samples like buttons.
Acurate Color Measurement on any Automotive Interior
Displays color measurement data in an easy-to-understand format according to ISO 9001 to process results and make adjustments.
Operates in Harsh Production Environments
Built with durability in mind, the ERX31 is rugged enough to endure busy labs and production lines without compromising measurement accuracy.
Short-Term Stability and Long-Term Accuracy
Uses real dual beam measurement and automatic wavelength calibration. Only requires external calibration every 4 weeks for maximum uptime.
ERX31
Design/Premedia
Specification
Formulation
Production
Quality Control
Specifications
| Measurement Geometry | 45°/0° |
| Measurement Time | flash |
| Measurement Working Distance | 10mm |
| Short Term Repeatability - White | dL*, da*, db* < 0.03 |
| Spectral Interval | 330-730 |
| Spectral Range | 1nm |
