TAC7

For Scanning Appearance Characteristics

The TAC7 color scanner captures and stores color, texture, gloss and other surface appearance characteristics of physical material samples.

Capture Materials with Unmatched Realism

Measuring a material’s appearance characteristics is critical to improving quality and accelerating time to market. By accurately measuring the appearance characteristics of physical samples, the TAC7 Scanner produces digital material files that can easily be communicated and shared across the design to production workflow.

Benefits:

  • Capture physical appearance properties such as color, texture, gloss, translucency and transparency in a digital format
  • Simplify the maintenance and upkeep of samples by utilizing digital material libraries
  • Eliminate ambiguities with precise accuracy to improve product quality and communication with stakeholders to reduce design approval cycles and accelerate time to market
  • Reduce the amount of time spent manually adjusting and correcting scanned materials
  • Experience more accurate renderings and improved product quality
The TAC7 Scanner enables designers to capture reality in a physically precise way. From special effects pigments to synthetic fabrics, it is now possible to capture and communicate physical appearance properties, such as color, gloss, and texture, digitally to experience unmatched realism in 3D designs.
Need More Information?
Want to improve the consistency of your material renderings?

Integrate the PANTORA Material Hub into your design visualization workflow to create, manage, share, and edit a centralized library of digital materials.

Specifications

Measurement Geometry

4 monocromatic cameras at 0º, 22.5 º, 45º and 67.5º
illumination with 20+ white LEDs
3 spectral filter wheels and a motorized Linear Light Scanner

Inter-Instrument Agreement

Not published

Illumination Colors

Not published

Illumination Spot Size 130 mm
Image Contact During Measurements

No

램프 수명

10.000 hrs

조명 수준 조정

Automatic

조명 수준 센서

Yes

광원

LED

Linearity

Not published

Measurement Spot

130 mm

Measurement Time

15 to 60 min

Media Thickness

210 mm x 297 mm (flat surfaces),
5.45 kg max.

Patch Size

130 mm

습도

Operating Humidity: 20% to 80% relative, non-condensing
Storage Humidity: 5% to 90% relative, non-condensing

작동 온도 범위

10º C to 40º C / 50º F to 111º F

보관 온도 범위

-20º C to 55º C / -4º F to 131º F

재료

Steel, PUR

Minimum Order Quantity

1

유닛 컬러

Black

무게

126 kg / 278 lb

Package Dimensions (length, width, height)

112 cm x 112 cm x 180 cm / 44 in x 44 in x 71 in

선적 중량

270 kg / 595 lb

3rd Party Software Supported

Through PANTORA

통신 인터페이스

1000BaseT

Configuration Options

Backlight option for Alphamaps (end of 2016)

Experience Level

Advanced

Import/Export Format

AxF via PANTORA SW

기기 표시

No

지원 언어

EN

Software Development Kit

TAC7 SDK

Status Panel

Yes

Battery

No

전압

100-240 VAC/50-60 Hz

전력량

250 W

교정

Radiometric calibration (user)
Geometric calibration (service)

Measurement Background

Black

Mobile Device Compatibility

No

Optical Brigtener Compensation (OBC)

No

NetProfiler Support

No

PantoneLIVE Support

No

Sample Preview

Yes

품질보증

12 month, sold with maintenance contract

What's Included?

TAC7 Scanner, calibration targets, cassette, power and ethernet cords

Android

No

Apple iOS

No

Macintosh

No

Windows

Windows 7 64 bit or
Windows 10 64 bit

Available Disk Space

Min. 1 TB free space

Connectivity

Min. 1 Gigabit Ethernet adapter
(recommended: 2 adapters, one dedicated for TAC7 communication)

Display Resolution

1080p or higher

Internet Connection

Not required

Memory

Min. 16 GB

Number of Displays Supported per Workstation

2

Optical Drive

Internet or usb dongle

Processor

Intel Xeon or Core i7 recommended (AMD CPUs not tested by X-Rite)
min. 8 virtual cores (for example 4 physical and 2x hyperthreading)
min.10,000 CPU Marks recommended

Security

User must have Administrator rights to install and uninstall the application

Video Card

NVIDIA Quadro or GeForce (AMD GPUs not tested by X-Rite)
min. 2 GB RAM, min. 5,000 G3D Marks recommended

Compatible Android Devices

No

Compatible iOS Devices

No

Data Format AxF

"To turn the vision of a fully automated Car-Configurator process into reality, TAC is essential. X Rite's solution enables us to reach true-to-life quality images to replicate highlights in a car's paint job." - Dr. Markus Denny, Head of Digital Image Factory

"At the core of our material process is a flexible solution for easily creating, processing and providing virtual materials easily in a multitude of different systems with the ultimate level of realistic depiction. Solutions from our partner X-Rite help us to accomplish this task." - Jan Pflüger, Digital Retail / After Sales IT Solutions


You Might Also Like

Partners

Appearance Exchange Format (AxF™)

For Communicating Material Appearance Data


AxF is a vendor-neutral file format that digitally stores and shares a material’s appearance properties across PLM, CAD and rendering applications.

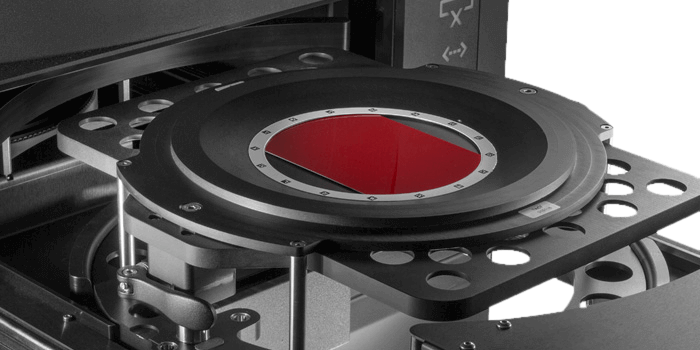

TAC Scanning Services
