모델 번호 : EO3AST

i1iO for i1Pro 3 & i1Pro 3 Plus

The i1iO is a robotic, automatic chart reading system designed for photographers, designers, and printers who want to eliminate manual strip reading.

Automation for the Highest Level of Color Accuracy.

Manually reading test charts for profiling and color validation is time-consuming and leaves room for human error. The new model of i1iO has been developed to accommodate the i1Pro 3 and the i1Pro 3 Plus, providing a simple way to enhance functionality, versatility, and speed up the measurement process.

Designed to accommodate the i1Pro 3 and i1Pro 3 Plus, this enhanced model features additional functionality and versatility, transmissive profiling capabilities, and faster measurements.

Simple. Quick. Versatile.

  • Measures reflective test charts on a variety of substrates up to 10 mm thick, including thin polybag material, ceramics, and textiles.
  • Reads more than 500 patches per minute in scanning mode under the M0 measurement condition to quickly create custom profiles.
  • Offers ultimate flexibility through hands-free automation and ease-of-use.
  • Supports automated transmission profiling with i1Pro 3 Plus for backlit film and materials used in signage.
  • Provides more accurate and consistent profiles than created by hand.

Integration with i1Pro 3 Products

The i1iO enables hands-free chart reading for automated color profiling. Combined with the i1Pro 3 & i1Pro 3 Plus, the i1iO optimizes automated file creation allowing for a reduction of wasted time and materials during production.



Need More Information?

Trade-In your old device today!

Upgrade to the i1Pro 3/i1Pro 3 Plus or i1iO Generation 3 Table and get on the path of color accuracy today!

Specifications

Available Disk Space 2GB
교정 Automatic on Integrated Calibration Reference
통신 인터페이스 USB 1.1
Connectivity Powered USB port
크기(길이, 너비, 높이) 510 x 460 x 170 mm, 20 x 18.1 x 6.7 (Width x Depth x Height)
Experience Level Intermediate to Advanced
지원 언어 Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
Macintosh MacOS X 10.13x, 10.14x or 10.15x (with latest upgrades installed)
Measurement Background White
Media Thickness Max. 10mm
Max. 33mm with optional Z Axis Spacer
Package Dimensions (length, width, height)

 254.0 mm  X 609.6 mm X 584.2 mm
(10” x 24” x 23”)

Patch Size Minimal Patch Size in Scanning Mode: 16 x 16 mm (0.63” x 0.63”) with i1Pro3 Plus
Scanning Area Positioning Area: 32 x 23 cm, 12.6” x 9” (Width x Height)
Scanning Capability Yes
선적 중량  6.849 kg
(15.10 lbs.)
Single Pass Scan Yes
Software Development Kit Available for OEM customers
Software Modes Basic & Advanced
유닛 컬러 Black/Silver
User Experience Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
전압 100 to 240 VAC, 50 / 60 Hz
품질보증 Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.
무게 4.5 kg, 9.9 lb (without i1 Pro device)
What's Included? i1iO table; Replacement Glider Ring; Auto rating power supply 100 – 240 VAC, 50/60Hz; Main power cable; USB cable; Quick Start Guide
Windows Windows 8.1, 10 (with latest Service Pack installed)

You Might Also Like

2020 best spectro award

i1Publish Pro 3 Plus


i1Publish Pro 3 Plus로 카메라, 모니터, 디지털 프로젝터, 스캐너 및 프린터에 대한 사용자 지정 프로필을 빠르고 쉽게 만들고 캡처부터 출력까지 색 정확도를 보장합니다.


2020 best spectro award

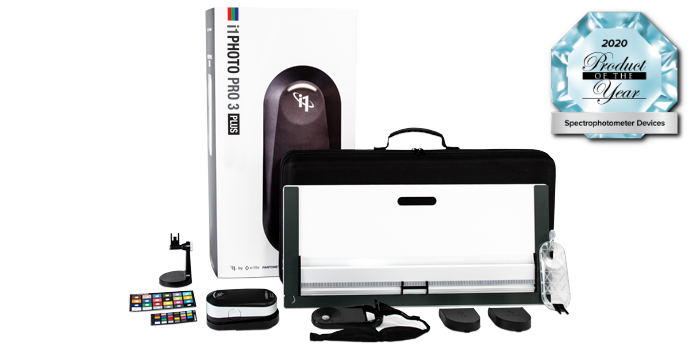

i1Photo Pro 3 Plus


i1Photo Pro 3 Plus has been discontinued. Visit our website to learn more about our current calibration and profiling options, including i1Pro 3 Basic or i1Pro 3 Publish.


생산 중단
New
2020 best spectro award

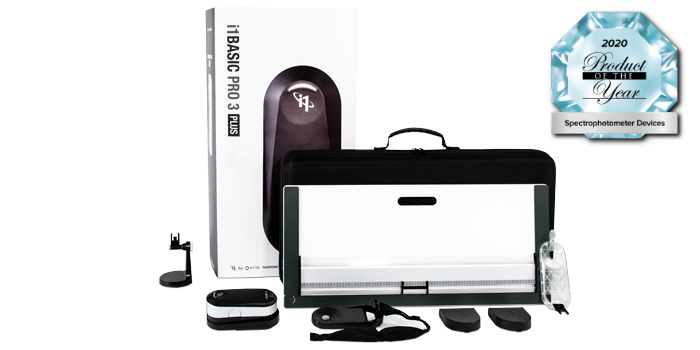

i1Basic Pro 3 Plus
