모델 번호 : 962
962 Handheld Spectrophotometer
For Convenient Color Measurement
The X-Rite 962 is an entry-level handheld 0/45 spectrophotometer designed to address a wide range of industry-specific color formulation and quality control needs.
Accurate Color On the Go
The 962 portable handheld 0/45 spectrophotometer is a convenient color measurement instrument that allows you to obtain absolute and differential measurements in the lab, plant or field for a wide range of colorimetric systems. It is ideal for distributed workgroups whose members have varying requirements and skill levels but who must deliver color consistency across the supply chain.
The X-Rite 962 features an easy-to-read graphical LCD display and a pass/fail mode that measures against up to 1,024 standards with tolerances that can be stored for easy pass/fail measurement. Its unique Project Mode enables the collection of multiple color standards under an identified project as part of a corporate color standards program. The 962 is available in three models, distinguished by their measurement area: 962 (7mm), 962S (4mm), 962L (15mm)
Benefits:
- The 962 is easy to read and easy to use, regardless of the skill level of the operator. Its Pass/Fail mode is a fast way for users to evaluate color accuracy against an established standard.
- When paired with Color iQC or Color iMatch software, the 962 offers increased control over QC and color formulation activities.
- The 962 captures color data that helps identify variation in incoming materials, production batches and more, reducing the color approval cycle and speeding time to market.
- Its wide colorimetric range meets a number of CIE certifications and includes CIE XYZ, CIE Yxy, CIE LAB, Hunter LAB, CIE LCH, CME, CIE94, Whiteness and Yellow.
When used with X-Rite NetProfiler, a cloud-based blend of software and color standards for verifying and optimizing performance of color measurement devices, variance among instruments used in various parts of the color workflow is reduced.
Specifications
Short Term Repeatability - White | 0.10 ΔE*ab on white ceramic (Standard deviation) |
---|---|
Measurement Geometry | 0/45° |
Inter-Instrument Agreement | 0.20 ΔE*ab avg. |
Illumination Spot Size | 21.5mm or 9.5mm or 6.5mm |
램프 수명 | Approx. 500,000 measurements |
광원 | Gas-filled tungsten lamp |
Measurement Cycle Time | ≈ 2 seconds |
Measurement Spot | 15mm or 7mm or 4mm |
Measurement Time | ≈ 2 seconds |
Photometric Range | 0 to 200% |
Photometric Resolution | 0.01% |
Spectral Analyzer | Blue-enhanced silicon photodiodes |
Spectral Interval | 10nm |
Spectral Range | 400nm-700nm |
Spectral Reporting | 10nm |
Color Spaces | CIE XYZ, CIE Yxy, CIE LAB, Hunter LAB, CIE LCH, |
Illuminants | A, C, D50, D65, D75, F2, F7, F11 & F12 |
Observers | 2° & 10° |
Reflectance Aperture(s) | 1 |
습도 | 5% to 85%, non-condensing |
작동 온도 범위 | 50° to 104°F (10° to 40°C) |
보관 온도 범위 | '-4° to 122°F (-20° to 50°C) |
크기(길이, 너비, 높이) | 19.6 cm, 8.4cm, 10.9cm |
무게 | 1.1 kg |
Package Dimensions (length, width, height) | 36cm, 30cm, 20cm |
선적 중량 | '4kg |
통신 인터페이스 | RS-232 |
기기 표시 | Graphic LCD |
지원 언어 | English, German, French, Spanish, Italian, Portuguese |
Software Development Kit | XDS4 |
전압 | 100-240VAC 50/60Hz, 12VDC @ 2.5A |
Sample/Measurement | 1024 |
Standards | 2000 |
교정 | White, Zero, UV |
NetProfiler Support | Tethered |
Sample Preview | Targeting window |
품질보증 | 12 months |
주요 지원
펌웨어 : 소프트웨어 : 지원 문서 :- What is Meant by the Term "Observer Angle"?
- Whiteness Index (WI) displays XXX.X
- 900 series instrument Troubleshooter
- Calibrating the 962 / 964 & 939
- Resetting Your 939, 962, or 964 Instrument
주요 교육
Online Training / eLearning: Onsite Training: Seminar: 모든 교육 보기You Might Also Like
Color iQC Software
QC 및 QA를 위한 소프트웨어
Color iQC 소프트웨어를 사용하여 공급망 전체에서 일관된 색상 품질을 제어할 수 있습니다. 자세한 내용은 X-Rite에 문의하십시오!

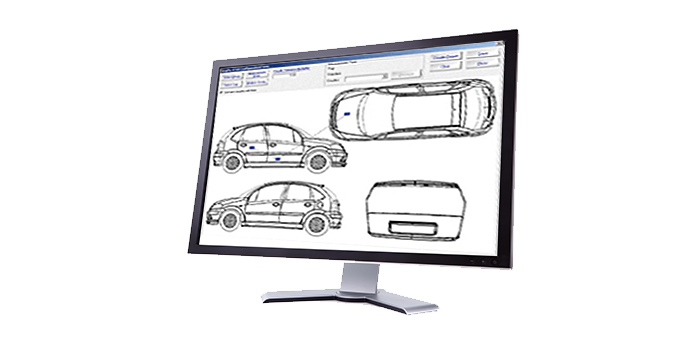

X-RiteColor® Master Software
