i1Photo Pro 2
모델 번호 : eo2pho

i1Photo Pro 2

생산 중단

Use i1Photo 2 to quickly and easily create custom camera, monitor, projector, scanner and RGB printer profiles, ensuring the colors you capture, view and print are true.



업그레이드 보기
Request Service
Register Your Product

다운로드

소프트웨어

지원 문서

사용 설명서 및 매뉴얼

사용 설명서

사양

Apple iOS
iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
iPod Touch running iOS 7.x or later
Short Term Repeatability - White Reflectance: 0.1 ∆E94*  (D50,2°, mean of 10 measurements every 3 seconds on white)
Measurement Geometry 45°/0° ring illumination optics, ISO 13655:2009
Illumination Spot Size 3.5 mm (0.14”)
광원 Gas filled tungsten (illuminant type A) and UV LED
Measurement Conditions • UV included - ISO 13655:2009 measurement condition M0
• D50 - ISO 13655:2009 measurement condition M1
• UV excluded Filter - ISO 13655:2009 measurement condition M2
Measurement Frequency in Scanning Mode 200 measurements per second
Minimal Media Thickness 3 mm (0.12”) on backup board
Patch Size Minimal Patch Size in Scanning Mode: 7 x 10 mm (0.28” x 0.39”) (Width x Height) with sensor ruler 10 x 10 mm (0.39” x 0.39”) (Width x Height) without sensor ruler
Photometric Range 10nm; Sampling interval 3.5nm
Spectral Analyzer i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
Spectral Reporting 380 ... 730 nm in 10 nm steps
Spectral Range 380 - 730 nm
Supported Profile Format ICC
Aperture Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
유닛 컬러 Silver/Black
크기(길이, 너비, 높이) i1Pro device: 155 mm x 66 mm x 67 mm (6.1” x 2.6” x 2.6”)
i1 Ruler: 337 mm x 102 mm (13.3” x 4.0”)
i1 Backup Board: 355 mm x 265 mm (14.0” x 10.4”) folded or 355 mm x 400 mm (14.0” x 15.7”) unfolded
무게 i1Pro device: 245 g (8.6 oz)
Package Dimensions (length, width, height) 13.7" x 6.1" x 17.0" / 348 mm x 155 mm x 434 mm
통신 인터페이스 USB 1.1
Experience Level Intermediate to Advanced
지원 언어 Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
Software Modes Basic & Advanced
User Experience Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
교정 Manual on external ceramic white reference
Measurement Background white, ISO 13655:2009; for measurements on backup board
Mobile Device Compatibility iOS
Optical Brigtener Compensation (OBC) Optical Brightener Compensation (OBC) with i1Profiler software
Scanner Target Support
  • ColorChecker Classic and ColorChecker Digital SG (X-Rite)
  • Reflective IT 8.7/2 (X-Rite, LaserSoft and Wolf Faust)
  • Transmissive 4x5 and 35mm IT 8.7/1 (X-Rite, Kodak, LaserSoft and Wolf Faust)
품질보증 Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.

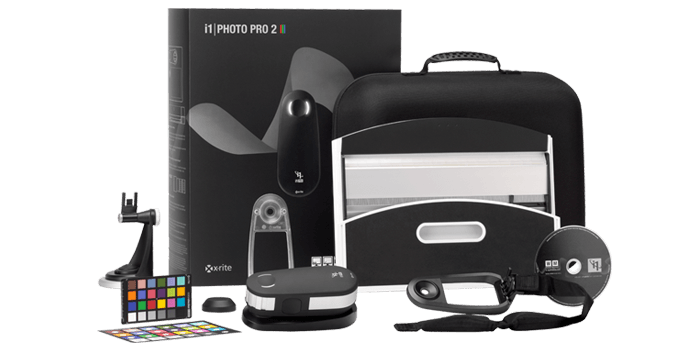

What's Included? i1Pro 2 spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, USB cable, i1Profiler v1.x software for monitors, projectors, scanners and RGB printers, ColorChecker Camera Calibration software, PANTONE Color Manager software, ColorChecker Classic target [mini], ColorChecker Proof target and soft-sided storage case. Free ColorTRUE mobile app download from iTunes® App Store.
Macintosh MacOS X 10.13x, 10.14x  or 10.15x  (with latest upgrades installed)
Windows Windows 7, 8, 8.1, 10 (with latest Service Pack installed)
Available Disk Space 2GB
Connectivity Powered USB port"Powered USB port

WINDOWS: Network adaptor installed and driver loaded"
Display Resolution 1024x768 pixels or higher
Internet Connection Required for software install, download and automatic update
Memory 2GB
Number of Displays Supported per Workstation 4
Optical Drive DVD Drive or Internet Connection
Processor MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better
Security User must have Administrator rights to install and uninstall the application
Video Card MAC: Latest drivers for video card installed; WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
Compatible iOS Devices Compatible with Free ColorTRUE Mobile App:
• iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
• iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
• iPod Touch running iOS 7.x or later
