모델 번호 : 2700-ikc
eXact InkKeyControl
생산 중단

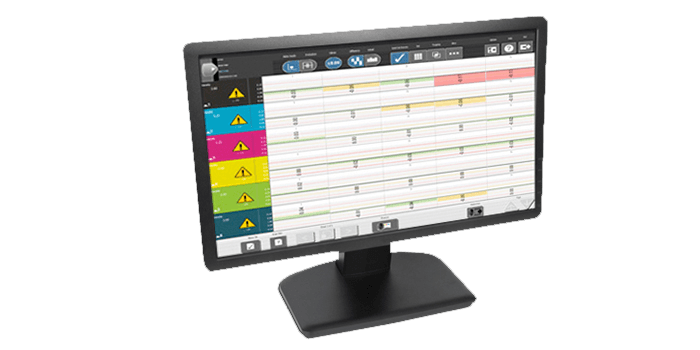

eXact InkKeyControl Software with eXact Scan is a manual scanning solution for press-side ink key control in offset print, increasing productivity by reducing press set-up time.
다운로드
업그레이드 비교
| 3rd Party Software Supported | X-Rite InkKeyControl, eXact Manager, NetProfiler, and third party scanning integrators | |
|---|---|---|
| Aperture | eXact Auto-Scan supports 1.5mm & 2mm | |
| Battery | Lithium Ion, 7.4VDC, 2200mAh | |
| BestMatch Feature | Yes | Yes |
| Black Background With Sheet Storage | Black Background | |
| 교정 | Automatic on integrated white reference | |
| Closed Loop Support | Yes | Yes |
| Color Bar Alignment | Laser | |
| Color Differences | CIE ∆E* (1976), ∆E CMC, CIE ∆E* (2000), and CIE ∆E* (1994) | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h° | CIE L*a*b*, CIE L*C*h° |
| 통신 인터페이스 | USB 2.0; Bluetooth | |
| Configuration Options | NetProfiler | |
| Connectivity | USB, Bluetooth | USB 2.0; Bluetooth (not for Apple M1 and later systems) |
| Density Range | 0.00 D – 3.00 D | |
| Density Standards | Status A, E, I, T, Tx, Ex, Hi-Fi | Status A, E, I, T, Tx, Ex, Hi-Fi |
| Display Resolution | Minimum: 17” touch-screen monitor with 1280 x 1024 resolution Recommended: 22” touch-screen monitor with 1920 x 1080 resolution |
Minimum: 17” touch-screen monitor with 1280 x 1024 resolution
Recommended: 22” touch-screen monitor with 1920 x 1080 resolution |
| Experience Level | Press Operators, Print Quality Managers interested in controlling color throughout the workflow and reducing make-ready waste. | |
| G7 Certification | Yes | Yes |
| 습도 | 30% to 85% RH (non-condensing) | |
| Illuminants | A, C, D50, D65, D75, F2, F7, F11, D12 | A, C, D50, D55, D65, D75, F2, F7, F11, D12 |
| Import/Export Format | CxF3, jtl, cbl, | CxF3, SDF, SVF, TVF, XML |
| 산업 표준 | ISO 12647-2, G7, PSO, Japan Color | |
| Ink Wells / Ink Units | Up to 16 | |
| 기기 표시 | Color touch-screen, 320 x 240 pixels | |
| Inter-Instrument Agreement | 0.3 dE*ab | |
| Internal Temperature & Humidity Sensor | Yes | |
| 지원 언어 | Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Portuguese, Russian, Spanish | Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish |
| 광원 | Gas filled tungsten (illuminant type A) and UV LED | |
| Macintosh | InkKeyControl not Macintosh supported | |
| Measurement Conditions | M0, M1 (method 1 and method 2), M2, M3 (all according to ISO 13655:2009) | |
| Measurement Geometry | 45°:0° ring illumination optics, ISO 5-4:2009 | |
| Measurement Spot | eXact Auto-Scan supports 1.5mm & 2mm | |
| Media Thickness | 1mm or less | |
| NetProfiler Support | Yes | Yes |
| Observers | 2° and 10° | |
| 작동 온도 범위 | 10°C to 35°C; 50°F to 95°F | |
| PantoneLIVE Support | Yes | Yes |
| Pass / Fail | Yes | Yes |
| Patch Size | 3mm minimum with 1.5mm aperture | |
| Sample/Measurement | Max 5,000 samples on the eXact | |
| Scan Length | 29" (74 cm) or 40"(102 cm) maximum length depending on track size | |
| Scanning Capability | Yes | |
| Scanning Speed | 7" / sec (160 mm / sec) | |
| 서비스 표시기 | Certification Reminder | |
| Short Term Repeatability - Density | +/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D). | |
| Short Term Repeatability - White | 0.05 ΔEab (standard deviation) White BCRA (Error compared to mean value of 10 measurements every 5 seconds). | |
| Single Pass Scan | M0/M1 or M0/M3 or M1/M3 | |
| Software Development Kit | Yes | |
| Spectral Analyzer | DRS Spectral Engine | |
| Spectral Range | 400 nm to 700 nm | |
| Spectral Reporting | 400 nm to 700 nm with 10nm interval | |
| Standards | More than 20,000 standards (incl. data for all M modes); New Color Library Tool to Create and Store Standards. | |
| 보관 온도 범위 | -20° to 50°C, -4° to 122°F | |
| Supported Devices | eXact Scan | eXact Scan, eXact Auto-Scan |
| Track Sizes | 29" (74cm) or 40"(102cm) | |
| 유닛 컬러 | Black/Silver | |
| User Experience | Configurable | |
| 전압 | 12 VDC @ 2.5 A | |
| 품질보증 | 1 year | |
| What's Included? | Track, power supply, interface cables, eXact Standard or Advanced with Scan and BlueTooth (if purchased), InkKeyControl software (if purchased) and documentation, guide, carrying case, device certificate | |
| Windows | Windows 7 (32 and 64 bit), Windows 8 (32 and 64 bit), Windows 10 (32 and 64 bit) | Windows® 10 (64 bit), Windows® 11 (64 bit) — Intel Only |
| 자세히 표시 | ||
