모델 번호 : 2246

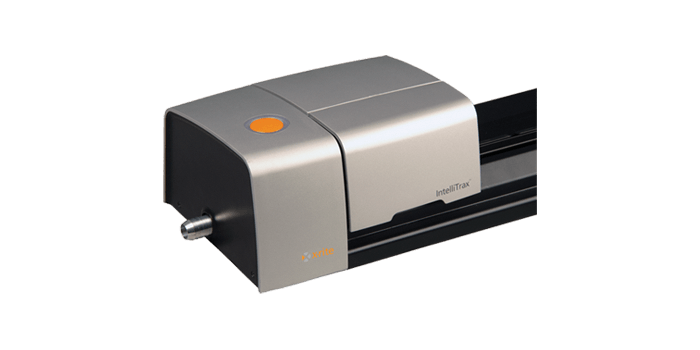

IntelliTrax
생산 중단
다운로드
업그레이드 비교
| BestMatch Feature | Yes | |
|---|---|---|
| Black Background With Sheet Storage | Yes | |
| 교정 | Automatic on integrated and covered white reference | |
| Closed Loop Support | Yes | |
| Color Bar Alignment | Yes | |
| Color Differences | CIE ∆E* (1976), ∆E CMC, CIE ∆E* (2000), and CIE ∆E* (1994) | |
| Color Spaces | CIE L*a*b*, CIE L*C*h° | |
| 통신 인터페이스 | Ethernet | |
| Configuration Options | Head type, track length, aperture, Handheld, foot switch | |
| Connectivity | Ethernet | |
| Density Range | 0.0 D to 3.0 D | |
| Density Standards | Status A, E, I, T, Tx, Ex, Hi-Fi | |
| Display Resolution | Minimum: 17” touch-screen monitor with 1280 x 1024 resolution Recommended: 22” touch-screen monitor with 1920 x 1080 resolution |
|
| Embedded NetProfiler Support | Yes | |
| G7 Certification | Yes | |
| 습도 | 30 to 85% RH (non-condensing) | |
| Illuminants | A, C, D50, D65, D75, F2, F7, F11, D12 | |
| Image Contact During Measurements | No Contact | |
| Import/Export Format | CxF3, jtl, cbl, | |
| 산업 표준 | ISO 5-4:2009(E), ISO 13655:2009 | |
| Ink Wells / Ink Units | Density Version: Up to 8 Spectral Version: Up to 16 |
|
| Inter-Instrument Agreement | 0.3 dE*ab | |
| 지원 언어 | Chinese Simplified, Chinese Traditional, English, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish | |
| 광원 | Gas filled tungsten (illuminant type A) and UV LED | |
| Measurement Background | Black as specified in ISO 12647-2 and 3 | |
| Measurement Conditions | M0, M1, M3 | |
| Measurement Geometry | 45°/0° ring illumination optics, ISO 5-4:2009(E) | |
| Media Thickness | Max 1.0 mm |
|
| NetProfiler Support | Yes | |
| Observers | 2° and 10° | |
| 작동 온도 범위 | 10°C to 35°C 50°F to 95°F |
|
| PantoneLIVE Support | Yes | |
| Pass / Fail | Yes | |
| Patch Size | Small: 2 mm x 3 mm Medium: 3 mm x 3 mm Polarizer: 3 mm x 3 mm |
|
| Scan Length | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
|
| Scanning Area | Color bar within 38mm from the sheet edge | |
| Scanning Capability | Yes | |
| Scanning Speed | 170 mm / sec | |
| Sheet Storage | Yes | |
| Short Term Repeatability - Density | On White: ± 0.01 D max. Cyan, Magenta, and Black: ± 0.02 D @ 1.8 D Yellow: S/M: ± 0.02 D @ 2.0 D Polarizer: ± 0.03 D @ 1.8 D |
|
| Short Term Repeatability - White | 0.15 dE max | |
| Single Pass Scan | M0/M1 or M0/M3 or M1/M3 | |
| Software Development Kit | Yes | |
| Software Modes | Density /Spectral | |
| Spectral Analyzer | DRS spectral engine | |
| Spectral Interval | 10 nm | |
| Spectral Range | 400 nm to 700 nm | |
| Spectral Reporting | 400 nm to 700 nm with 10mm interval | |
| 보관 온도 범위 | -20° to 50°C -4° to 122°F |
|

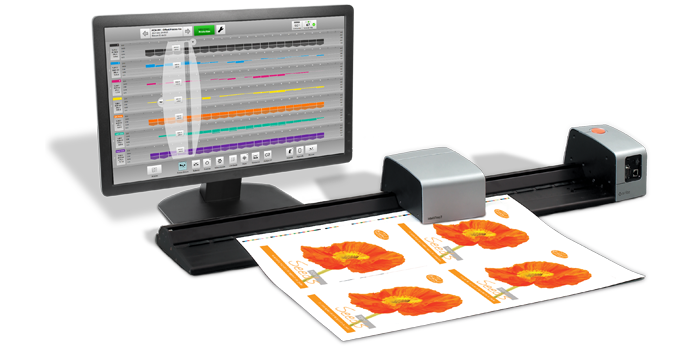

| Supported Devices | IntelliTrax2, eXact | |
| Track Sizes | 29" (74cm) 32" (81cm) 40"(102cm) 44” (112cm) 56" (142cm) 65" (165cm) |
|
| 전압 | 100 - 240VAC, 50/60Hz | |
| 품질보증 | 1 year | |
| What's Included? | Vacuum pump, Cabling, Power supply, Ethernet cable, Software CD, Manuals, device certificate | |
| 자세히 표시 | ||
