Model #: ci51
Ci51
For Entry-Level Retail Paint Measurement
The X-Rite Ci51 is a versatile, affordable, entry-level handheld sphere spectrophotometer that offers fast, easy means of capturing color data from customer-supplied samples.
Fast color matching for an efficient paint counter
Quickly determining formulation recipes for matching paint to customer-supplied samples enhances customer satisfaction and paint counter productivity. With the X-Rite Ci51 handheld spectrophotometer, counter personnel can measure flat or complex samples in less than two seconds on materials such as paper, plastic, fabric and a variety of hard surfaces.
The Ci51 is connected to a personal computer and can be used as a tethered handheld device or mounted for small footprint benchtop use. The accompanying ColorDesigner PLUS software formulates colors and stores paint recipes for fast, accurate customer service. An optional foot pedal enables remote hands-free operation.
Benefits:
- Accommodates a wide range of samples and sizes with measurement capability of 14mm or larger on materials such as paper, plastic, fabric, and a variety of hard surfaces.
- Flat or complex samples can be measured in as little as two second for fast color data acquisition.
- Its dampened, flip back targeting shoe and remote measurement trigger make it easy to measure difficult-to-handle samples.
- Providing the ultimate in versatility, the Ci51 can be used as a tethered handheld or mounted as a small footprint benchtop instrument
Specifications
| Short Term Repeatability - White | .10 ΔE*ab on white ceramic |
|---|---|
| Measurement Geometry | d/8° |
| Inter-Instrument Agreement | 0.30 ΔE*ab avg. |
| Illumination Spot Size | 14mm |
| Lamp Life | Approx. 500,000 measurements |
| Light Source | Gas-filled tungsten lamp |
| Measurement Cycle Time | ≈ 2 seconds |
| Measurement Spot | 8mm |
| Measurement Time | ≈ 2 seconds |
| Photometric Range | 0 to 200% |
| Photometric Resolution | 0.01% |
| Spectral Analyzer | Blue-enhanced silicon photodiodes |
| Spectral Interval | 10nm |
| Spectral Range | 400nm-700nm |
| Spectral Reporting | 10nm |
| Reflectance Aperture(s) | 1 |
| Humidity | 5% to 85%, non-condensing |
| Operating Temperature Range | 50° to 104°F (10° to 40°C) |
| Storage Temperature Range | '-4° to 122°F (-20° to 50°C) |
| Dimensions (length, width, height) | 21.3 cm 9.1 cm 10.9 cm |
| Weight | 1.06 kg |
| Package Dimensions (length, width, height) | 36cm, 30cm, 20cm |
| Shipped Weight | '4kg |
| Communication Interface | USB 2.0 |
| Instrument Display | Backlit Color Graphic LCD |
| Software Development Kit | XDS4 |
| Voltage | 100-240VAC 50/60Hz,
12VDC @ 2.5A |
| Calibration | White and Zero |
| Sample Preview | Targeting window |
| Transform Support | Embedded |
| Warranty | 12 months |
| What's Included? | Instrument with white calibration standard, black trap, manual(CD), AC adapter, USB cable |
Parts & Accessories
.png?h=350&la=en&w=700&hash=064027D1995A051B240382CFFA4BDC7C7D25B72B)
Featured Support
Firmware: Software: See All SupportFeatured Training
Online Training / eLearning: Onsite Training: Seminar: See All TrainingYou Might Also Like

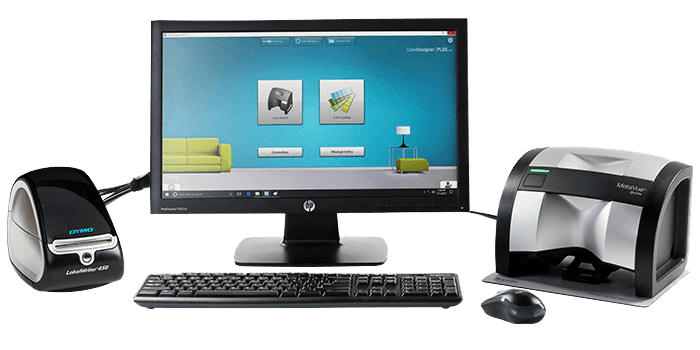

W Series
