i1Basic Pro

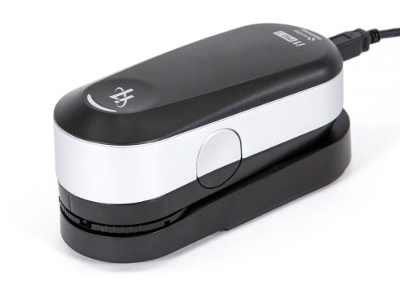

i1Basic Pro 3

Aperture Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed)
Available Disk Space 2GB
교정 Manual on external ceramic white reference (included)
통신 인터페이스 USB 1.1
Connectivity Powered USB port
크기(길이, 너비, 높이) i1Pro device: 162 mm x 69 mm x 64 mm (6.4” x 2.7” x 2.5”)
Display Resolution 1024x768 pixels or higher
Experience Level Intermediate to Advanced
습도 30 to 85% RH (non-condensing)
Illumination Spot Size 3 mm (0.12”)
Inter-Instrument Agreement 0.3 ∆E00* average, 0.8 ∆E00* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º))
Internet Connection Required for software install, download and automatic update
지원 언어 Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish
광원 i1Pro3 Plus LED Illumination (including UV)
Macintosh MacOS X 10.11x, 10.12x, 10.13x, 10.15 (with latest upgrades installed)
Measurement Conditions • M0 - UV included - ISO 13655:2017
• M1 - D50 - ISO 13655:2017
• M2 - UV excluded Filter - ISO 13655:2017
Measurement Frequency in Scanning Mode 400 measurements per second
Measurement Geometry 45°/0° ring illumination optics, ISO 13655:2017
Media Thickness 1mm or less
Memory 2GB Minimum
Number of Displays Supported per Workstation Up to 4
작동 온도 범위 10°C to 35°C
50°F to 95°F
Patch Size Minimal Patch Size in Scanning Mode: 7 x 7  mm (0.28” x 0.28”) (Width x Height) with sensor ruler 10 x 7 mm (0.40” x 0.28”) (Width x Height) without sensor ruler
Photometric Range 10nm; Sampling interval 3.5nm
Processor MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better
Scan Length Maximum 260mm (10.24")
Scanner Target Support Yes
Scanning Capability Yes
Security User must have Administrator rights to install and uninstall the application
Short Term Repeatability - White 0.05 dE00 on white (D50,2°, mean of 10 measurements every 3 seconds on white)
Single Pass Scan Yes
Software Development Kit Available for OEM customers
Software Modes Basic & Advanced
Spectral Analyzer i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array
Spectral Range 380 - 730 nm
Spectral Reporting 380 ... 730 nm in 10 nm steps

보관 온도 범위 -20° to 50°C
-4° to 122°F
Supported Profile Format ICC version 2, version 4.3,  & iccMax
유닛 컬러 Black/Silver
User Experience Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results
Video Card

MAC: Latest drivers for video card installed;

WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded
품질보증 Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use.
무게 i1Pro device: 285 g (10.1 oz)
What's Included? i1Pro 3 Plus spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target,  scanning ruler, backer board, USB cable.  i1Profiler v3.x software for monitor profiling plus QA for monitors and printers.
Windows Windows 7, 8, 8.1, 10 (with latest Service Pack installed)
