Model #: xcm
X-RiteColor® Master Software
Quality Assurance Software
Out of Production
X-RiteColor Master is the industry’s most versatile color management software, compatible with sphere, 0/45 and multi-angle spectrophotometers with contact and non-contact.
Industry-leading color management for manufacturing
Color mistakes can lead to expensive production downtime, rework and delayed time to market. With X-RiteColor® Master Software as a key color workflow element in manufacturing operations, users have immediate access to accurate, reliable color control data. It is compatible with a variety of spectrophotometer types, including 45/0, sphere and multi-angle, and can be used with both contact and non-contact instruments. It supports both color formulation and quality control operations.
Color Master’s Graphical Job function allows setting of measurement points on a visual bitmap for easy analysis and comparison.
Benefits:
- Standard, custom, and multiple tolerance options reduce set-up time and operating costs.
- Organization and measurement functions work in conjunction with handheld instruments to reduce measurement error.
- Multiple types of standard and custom reports can be created to simplify recording and access to color data.
- With color coding, tags, and notes, samples can be organized and tagged for quick assessment and easy data management.
- Enables designation of leftover material for reuse, reducing the cost of formulation, inventory and waste disposal.
Specifications
Measurement Conditions | Reflectance, Transmission, SCI / SCE |
---|---|
Supported Profile Format | N/A |
Color Differences | FMCII, CIE DL*, Da*, Db*, CIE DL*, DC*, DH*, Hunter DL, Da, Db, All Attributes of CIELab, CIELch or HunterLab, CMC (l:c), CIE2000 (l:c:h) |
Color Spaces | CIE L*a*b*, CIE L*C*h*, Hunter Lab, CIE (XYZxy) |
Illuminants | A, C, D50, D65, D75, F2, F7, F11, F12 |
Observers | 2 degree,10 degree |
Standard Indices | DIN6172, B-Depth, TAPPI452 B, TAPPI452 dB, DIN6175, Haze, Opacity, E313 98 dT, E313 98 T, Ganz / Griesser dT, Whiteness [E313, Ganz], Yellowness [D1925, E313] |
3rd Party Software Supported | N/A |
Compatible Software Supporting DNG Profiles | N/A |
Configuration Options | QAI, QAII, Metallix QA, FMI, FMII, FMIII, Web Edition |
Databases | Raima |
Experience Level | Beginner to Advanced |
Import/Export Format | MIF, XTF |
Languages Supported | English, French, German, Spanish, Italian, Portuguese, Japanese, Chinese |
Software Modes | N/A |
Supported Devices | eXact, eXact XP, CI4200, CI52, CI62, CI64, 962, 964, Color i5, Color i7, CE-7000A, CI7600, CI7800, SP62, SP64 |
User Experience | Configurable |
Industry Standards | See Standard Indices |
Ink Wells / Ink Units | No |
Mobile Device Compatibility | No |
NetProfiler Support | Yes |
PantoneLIVE Support | No |
Pass / Fail | Yes |
Sample Preview | Yes |
Scanner Target Support | N/A |
What's Included? | Installation CD with Instructions |
Android | No |
Apple iOS | No |
Macintosh | No |
Windows | Win 7, Win 10 |
Available Disk Space | 5 GB |
Connectivity | USB-Port |
Display Resolution | 1024 x 768 |
Memory | 2GB |
Number of Displays Supported per Workstation | 1 |
Optical Drive | Yes |
Processor | Core 2 Duo, 2 G |
Security | Install Only |
Video Card | N/A |
Compatible Android Devices | None |
Compatible iOS Devices | None |
Featured Support
Software:- X-Rite Web Edition Connection Client v8.9.6
- X-RiteColor Master v8.9.6
- X-RiteColor Master Web QA II v8.9.6
- X-RiteColor Master Web FM III v8.9.6
- X-Rite eXact Plugin for X-RiteColor Master
- What is Meant by the Term "Observer Angle"?
- Measuring "True" Color; Should I use SCE or SCI?
- Database Server Will Not Start (5 step fix)
- Windows7 and Vista Compatibility
- X-RiteColor Master - XRGA Information
Featured Training
Online Training / eLearning: Onsite Training: Seminar: See All TrainingYou Might Also Like
![Ci64 spectrophotometer measuring fabric](/-/media/global-product-images/c/ci6x-family-product-redesign/ci64/ci64-spectrophotometer-01-700x350.png?h=350&w=700&la=en&hash=67F90A7F7313925F0B85FC5CA872D19B9E9B15AC)

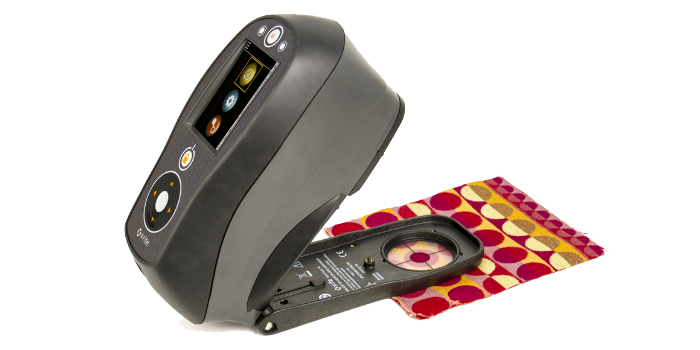

Ci64 Handheld Spectrophotometer
For the Most Accurate and Precise Measurement
X-Rite’s most precise handheld sphere spectrophotometer, the Ci64 is available in three models offering simultaneous SPIN/SPEX, correlated gloss, and a UV option.
![XRite](/-/media/global-product-images/c/ci6x-family-product-redesign/ci62/ci62-spectrophotometer-01-700x350.png?h=350&w=700&la=en&hash=2DA8267EB1FA470EA643D9E205526CC571B2D081)

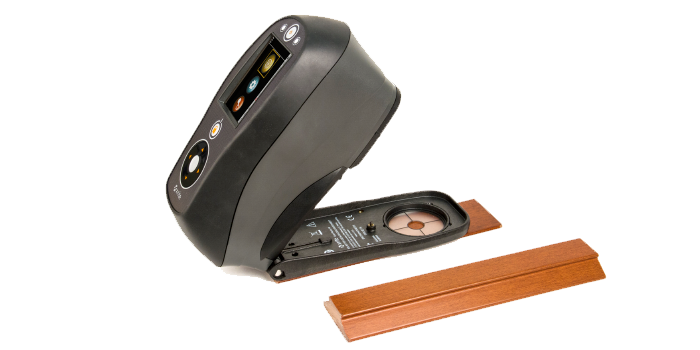

Ci62 Handheld Spectrophotometer
For Precise QC Measurement
The Ci62 is a high performing handheld spectrophotometer uniquely suited to manage color quality for applications with textured materials or printing on metal substrates.

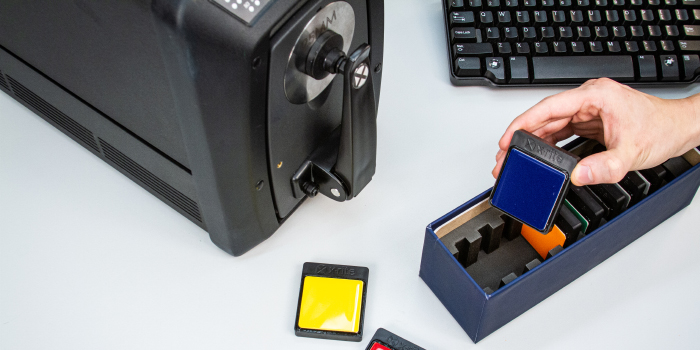

![NetProfiler Software for Device Optimization](/-/media/global-product-images/n/netprofiler-new/netprofiler-inuse-ci7500-12_700x350.jpg?h=350&w=700&la=en&hash=A4F2E5CCCDC98960F38D875D83BFCF32E701B6CC)

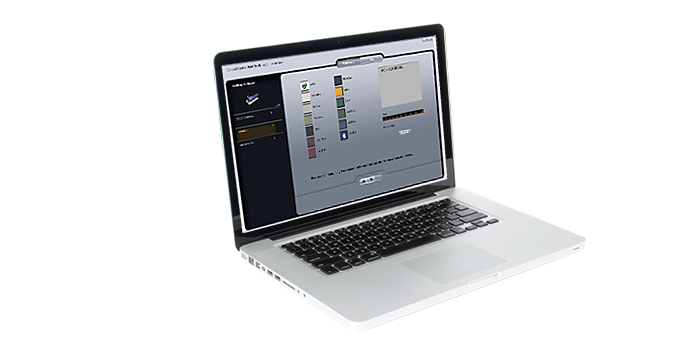

NetProfiler Device Performance Platform
