Model # ETV-XRaSDbc
eXact™ 2 Portable Spectrophotometer
For paper, corrugated, carton board substrates
- Identify exact point of measurement with Mantis™ video targeting
- Intuitive design and 30% larger screen make it easy to learn and use
- Avoid wet ink contamination with low-contact measurement area
Overview
Inter-Instrument Agreement
Measurement Time
Device Geometry
![exact-2-05-new.png]()
![exact-2-03-new.png]()
![exact-2-04-new.png]()
![exact-2-02-new.png]()
![ci64 product call out]()
Specifications
7.7
cm
![eXact 2 Dimension image]()
21.2
cm
7.7
cm
21.2
cm
Support
Resources
Videos
Next Generation of Color Measurement
Available in three models, eXact 2 reimagines color measurement with enhanced accuracy and speed, unrivaled non-contact video measurement and zoom technology, onboard Wi-Fi, and fleet management powered by X-Rite Link. eXact 2 also helps printers meet print quality program requirements and industry standards.
0.25
ΔEab
< 1
sec
45:0
Take Accurate Measurements and Inspect Patches with Video Targeting
All eXact 2 models use Mantis video targeting, combined with a high-resolution display that is 30% larger than previous generations, making it easy to find the measurement area. With Digital Loupe, you can quickly zoom to inspect or capture an image to include in your audit trail.
A Pressroom Operator's Best Friend
“We have stringent reporting needs. This is a device we can use press-side and allow the team to work without leaving their area and give us the kind of reporting we need with a user-friendly interface as well.” - Steve Lehning, GR Label
Quickly Scan M0, M1, M2, M3 in a Single Measurement
The eXact 2 Plus can easily toggle between spot and scan measurements using integrated wheels and patch recognition technology, speeding up measurement by 17%. eXact 2 Plus simultaneously measures M0, UV included/ISO 13655:2017; M1, D50/ISO 13655:2017; M2, UV excluded/ISO 13655:2017; and M3 - Polarization/ISO 13655:2017.
A Connected Ink and Print Workflow
Quickly collect and visualize your color data to find the information you need when you need it. All eXact 2 models offer on-screen, embedded quality control and quality assurance capabilities and simplified ink workflows. Work faster and more securely anywhere in your facility with onboard WiFi.
Best-in-Class Global Service and Support
With global service centers and 40+ certified partners, X-Rite has been helping the industry master color for 60+ years. In addition to ISO certification, Service Care Plans, and comprehensive training, we offer device management dashboards via My X-Rite. The dashboards provide real-time device health, service history, and remotely deploys firmware updates, color libraries, and standards across your entire fleet.
eXact 2 is Available in Three Models to Measure a Variety of Substrates
Capture color measurements on paper with eXact 2; film, poly and foil with eXact 2 Xp; and all ink, print and packaging substrates with eXact 2 Plus.
Automate Color Matching with Print Clone and eXact 2
AI-powered Print Clone + eXact 2 match legacy packaging colors fast—just upload, measure, and automate the correction.
End-to-End Protection for Peace of Mind
All eXact 2 models include two-years of ISO:9001 compliant NetProfiler verification and comprehensive coverage, including accidental damage protection and a loaner device with a Service Care Plan in regions where applicable.
Here's how the eXact 2 Standard fits into your workflow
Specification
Design/Premedia
Formulation
Production
Quality Control
Consistent color is a journey, but regardless of where you fall on the color maturity model, X-Rite Pantone has color measurement solutions for a wide range of substrates to help you achieve the best color possible.
With eXact 2, what you see is what you measure. Learn more about the innovative technology behind the eXact 2, including patented Mantis™ video targeting and Digital Loupe functionality.
Are you wondering which eXact 2 is right for your shop? Today we’ll compare features between the eXact 2, eXact 2 Xp, and eXact 2 Plus to help you decide.
Specifications
| Aperture | 1.5 mm, 2 mm, 4 mm or 6 mm |
| Battery | Lithium Ion, 3.63VDC, 4750mAh |
| BestMatch Feature | Yes |
| Calibration | Automatic on white reference |
| Color Differences | CIE ∆E* (1976), ∆ECMC, CIE ∆E* (2000), and CIE ∆E* (1994) |
| Color Spaces | CIE L*a*b*, CIE L*C*h° |
| Communication Interface | USB-C; Wi-Fi |
| Connectivity | USB-C; Wi-Fi |
| Density Range | 0.0 D – 3.0 D |
| Density Standards | Status A, E, I, T and G |
| Dimensions (length, width, height) | 21.2 cm x 7.7 cm x 7.7 cm (LxWxH)
8.4" x 3.0" x 3.0" (LxWxH) |
| G7 Certification | Yes with embedded G7, PSO, Japan Color job templates |
| Humidity | 30 to 85% RH (non-condensing) |
| Illuminants | A, C, D50, D55, D65, D75, F2, F7, F11, F12 |
| Import/Export Format | CxF3 |
| Industry Standards | ISO 5-4:2009(E), ISO 13655:2017 |
| Instrument Display | Color touch-screen, 800 x 480 pixels |
| Inter-Instrument Agreement | Average: 0.25 ΔEab, Max: 0.45 ΔEab (for M3: 0.55 ΔEab) (Measurements using X-Rite manufacturing standards at a temperature of 23°C +/- 1°C, 40-60% RH for all measurement modes on 12 BCRA color tiles and a white ceramic reference (D50, 2°)) |
| Languages Supported | Bulgarian Chinese Simplified, Chinese Traditional, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Thai, Turkish, Vietnamese |
| Light Source | LED |
| Macintosh | macOS 10.15, macOS 11, macOS 12 |
| Measurement Conditions | 2: M0, M1 (method 2), M2, M3 |
| Measurement Geometry | 45°:0° ring illumination optics, ISO 13655:2017 |
| Measurement Time | < 1 sec |
| NetProfiler Support | Yes |
| Observers | 2° and 10° |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| PantoneLIVE Support | Yes; Embedded Pantone Libraries |
| Pass / Fail | Yes |
| Scan Length | Max: 1,120mm (44”) |
| Scanning Capability | Yes, Embedded Scanning |
| Service Indicator | Certification Reminder |
| Short Term Repeatability - Density | +/- 0.01 D for CMYK (Status E or Status T measurements, maximum error compared to mean value of 10 measurements every 5 seconds at 2.0 D except for M3 Yellow at 1.7 D) |
| Short Term Repeatability - White | 0.02 ΔEab (standard deviation) White BCRA (Error compared to mean value of 20 measurements every 5 seconds) |
| Single Pass Scan | M0, M1, M2, M3 |
| Software Development Kit | Yes |
| Spectral Analyzer | DRS spectral engine |
| Spectral Interval | 10 nm |
| Spectral Range | 400 nm to 700 nm |
| Standards | Memory capacity for more than 50,000 standards |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Supported Substrates | Paper, corrugated, carton board |
| User Experience | Start-up wizard, configurable, customize toolset, upgradable |
| Voltage | 12 VDC @ 2.5 A (Docking Station Power Supply) |
| Warranty | 1 year |
| Weight | 620g, 1.4 lbs. |
| What's Included? | USB-C cable with Adapter for USB-A, Power Supply, Software and documentation, Docking/Charging Station, Quick Start Guide, Carrying case, ISO 9000 certificate. |
| Windows | Windows 10 (32 and 64 bit), Windows 11 |
Support
Parts and Accessories
 |
eXact 2 2mm Media Ring | View Details |
 |

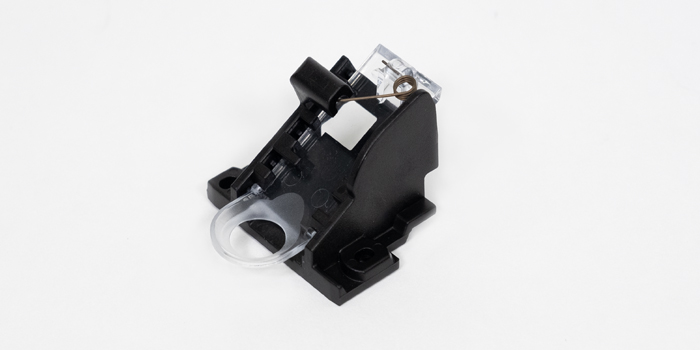

eXact 2 Media Flattener | View Details |
 |

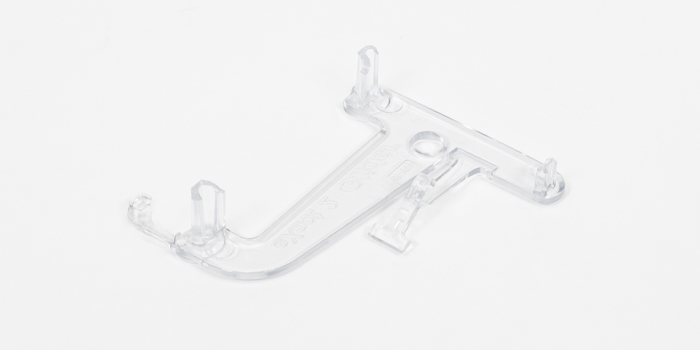

eXact 2 Media Glider | View Details |
 |
eXact 2 1.5mm Media Ring | View Details |
 |

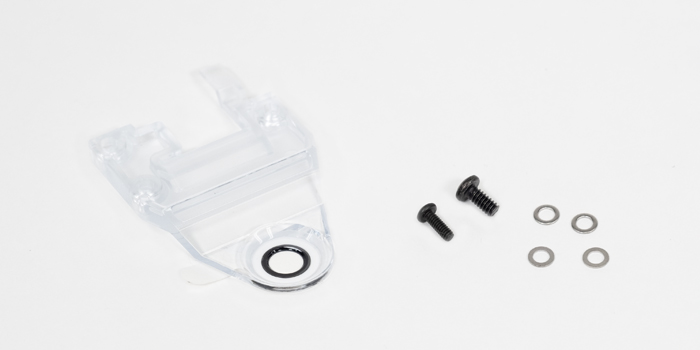

eXact 2 4mm Media Ring | View Details |
