Model # Ci62-XR
Ci62 Handheld Spectrophotometer
For Precise QC Measurement
- Mid-range quality control solution ideal for industrial and packaging applications
- Offers flexibility on sample size and shape with choice of 3 apertures
- Integrates with X-Rite software for a full solution
Overview
Inter-Instrument Agreement
White Ceramic Short Term Repeatability
Measurement Spot
![Ci62 spectrophotometer measuring plastic chair]()
![ci62 spectrophotometers]()
![ci64 product call out]()
Specifications
10.9
cm
![Ci60]()
21.3
cm
10.9
cm
21.3
cm
Support
Resources
Accurate Color Measurement on Complex Materials
With a choice of apertures, the mid-range Ci62 portable sphere spectrophotometer is uniquely suited to ensure accurate color measurement, ideal for quality control on applications with textured materials or printing on metal substrates.
.2
ΔE*
.05
ΔE*
4-14
mm*
Measure Unique Sample Sizes and Shapes
Available with a 14mm, 8mm, or 4mm* aperture, the Ci62 offers the flexibility to choose the right measurement size for different sample shapes and curvatures, including painted surfaces, molded plastic parts, metallic substrates, and woven textiles.
Monitor and Optimize Instrument Performance

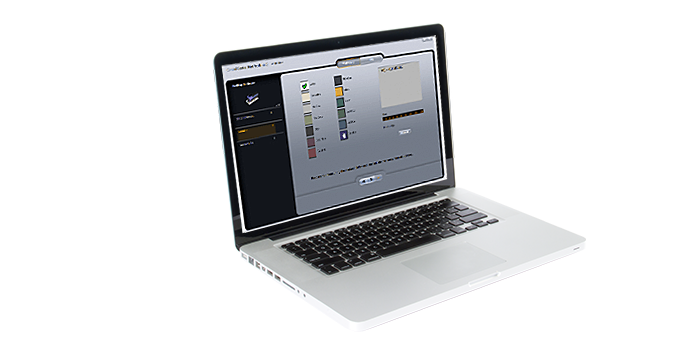

With supported NetProfiler software, the Ci62 provides a complete track and trace process for consistent measurement across multiple devices and locations, allowing users to monitor and optimize instrument performance anywhere in the supply chain.
Best-in-Class Global Service and Support
X-Rite has been helping customers master color quality for 60+ years. With global service centers and 40+ certified service partners, our comprehensive support includes technical assistance, ISO certification, Service Care Plans, training, and more. Whether troubleshooting issues, optimizing workflows, or staying current with the latest technology, you can trust our service and support teams to provide prompt and reliable assistance to minimize disruptions.
Simultaneous SPIN/SPEX for Gloss Assessment
Immediately identify variances in color and gloss to ensure accurate color readings or verify visual inspection
Flip Shoe Mechanism
Adds measurement flexibility and makes it easy to reach difficult areas
Software Compatible

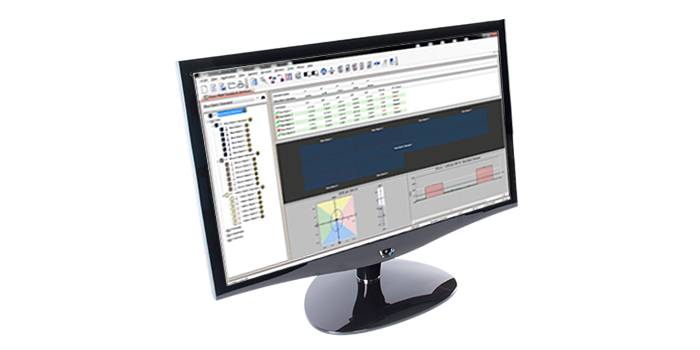

Integrates with X-Rite's formulation and quality control software for an end-to-end color solution
What Our Customers Are Saying About Ci62
"X-Rite solutions have made an unbelieveable difference in our business. It used to take us 2 weeks to prepare a color. Now we can prepare 5-6 colors per day."
"X-Rite solutions have made an unbelieveable difference in our business. It used to take us 2 weeks to prepare a color. Now we can prepare 5-6 colors per day."See how the Ci62 fits in your workflow:
Specification
Design/Premedia
Formulation
Production
Specifications
| Battery | Li-ion |
| Calibration | White and Zero |
| Color Differences | [√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference |
| Color Spaces | Lab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v* |
| Communication Interface | USB 2.0, Bluetooth* |
| Dimensions (length, width, height) | 21.3 cm 9.1 cm 10.9 cm |
| Embedded NetProfiler Support | Yes |
| Humidity | 5% to 85%, non-condensing |
| Illuminants | A, C, D50, D65, F2, F7, F11 & F12 |
| Illumination Spot Size | 20mm or 14mm or 6.5mm |
| Import/Export Format | CSV |
| Instrument Display | Backlit Color Graphic LCD |
| Inter-Instrument Agreement | 0.20 ΔE*ab avg. |
| Lamp Life | Approx. 500,000 measurements |
| Languages Supported | English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese |
| Light Source | Gas-filled tungsten lamp |
| Measurement Cycle Time | ≈ 2 seconds |
| Measurement Geometry | d/8° |
| Measurement Spot | 14mm or 8mm or 4mm |
| Measurement Time | ≈ 2 seconds |
| NetProfiler Support | Embedded |
| Observers | 2° & 10° |
| Operating Temperature Range | 50° to 104°F (10° to 40°C) |
| Package Dimensions (length, width, height) | 51cm, 20cm, 41cm |
| PantoneLIVE Support | Via software |
| Pass / Fail | Yes |
| Photometric Range | 0 to 200% |
| Photometric Resolution | 0.01% |
| Reflectance Aperture(s) | 1 |
| Sample/Measurement | 4000 |
| Sample Preview | Targeting window |
| Shipped Weight | '7kg |
| Short Term Repeatability - White | .05 ΔE*ab on white ceramic |
| Software Development Kit | XDS4 |
| Spectral Analyzer | Blue-enhanced silicon photodiodes |
| Spectral Interval | 10nm |
| Spectral Range | 400nm-700nm |
| Spectral Reporting | 10nm |
| Standard Indices | [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort |
| Standards | 1000 |
| Storage Temperature Range | '-4° to 122°F (-20° to 50°C) |
| Transform Support | Embedded |
| Voltage | 100-240VAC 50/60Hz,
12VDC @ 2.5A |
| Warranty | 12 months |
| Weight | 1.06 kg |
| What's Included? | Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable, carry case |
