The most advanced range of multi-angle spectrophotometers available today, the MA-T12, MA-T6, and MA-5 QC combine color imaging with multi-angle technology to deliver precise color measurements on special effect paints and finishes. These devices decrease downtime on paint, coating, assembly, and production lines, reduce scrap rates, and offer fast root cause analysis if color problems are discovered.

When combined with EFX QC software, X-Rite multi-angle spectrophotometers communicate color standards and tolerances across complex supply chains and provide accurate qc to simplify processes and speed production. Browse our offerings below or contact our team to choose the best handheld spectrophotometer for your business.

MA-T

MA-T12

12개 각도로 완전한 특성 측정


12개의 측정 각도와 컬러 이미징을 통해 MA-T12는 오늘날 특수효과를 적용한 복잡한 재료의 특성을 완전하게 파악하여 상세한 시각화를 가능하게 합니다.

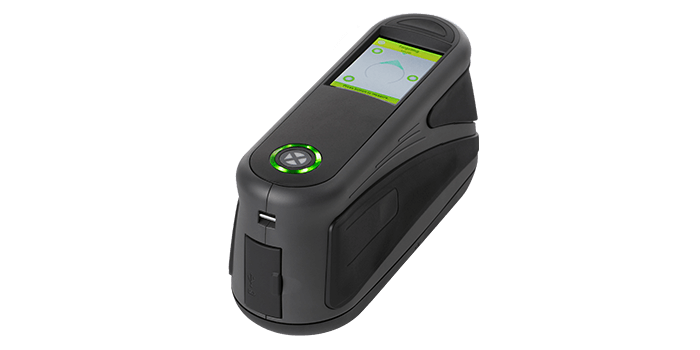

MA-T

MA-T6 Multi-Angle Spectrophotometer

For 6 Angle Spectral & Texture Measurement

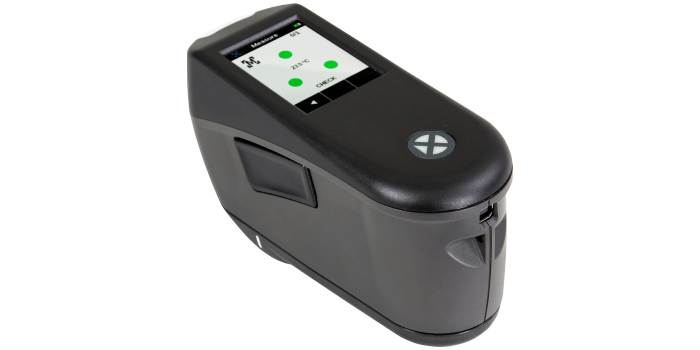

MA-5 QC | X-Rite Multi Angle Spectrophotometer for Effect Finishes

MA-5 QC Multi-Angle Spectrophotometer

5개의 측정각 분광측색계


MA-5 QC는 생산 현장, 실험실 및 현장에서 일관된 품질 관리 및 특수 효과 마감 색상 측정을 제공합니다.

Master Sparkle and Coarseness with MA-T12 and MA-T6

The easy-to-use MA-T family of multi-angle spectrophotometers sets a new industry standard for extreme effect finishes. Featuring an RGB camera and white light illumination (A, C, D50, D65, F2, F7, F11 & F1) and inter-instrument agreement of 0.18 ΔE2000 avg. on BCRA, these devices measure color, sparkle and coarseness with greater repeatability and reproducibility to identify and reduce defects.

The MA-T offers an intuitive and easy to use design. The centrally located aperture and 3 positioning pins ensure stable measurements, while the touch screen navigation and color display offer simple operation. A real-time preview verifies the correct the measurement area.

Included with the MA-T6 and MA-T12, EFX QC is a cloud-based software solution that offers new visual tools, including performance trend charts and stored measurement images, to create a more efficient quality assurance program across the supply chain. Real-time performance monitoring and actionable insights help troubleshoot out-of-tolerance colors.

MA-T12: Uses 12 angles of measurement (6 illumination sources and 2 pick-ups) and color imaging to fully characterize and measure color shifting pigments.

MA-T6: Uses 6 angles of measurement (6 illumination sources and 1 pick-up) and color imaging to visualize, track, and troubleshoot appearance color and coarseness for development and QC.



Gather Actionable Color Data for Special Effect Finishes with MA-5 QC

Built with quality control managers in mind, the cost-effective MA-5 QC is a compact and lightweight spectrophotometer that uses 5 measurement angles to ensure color harmony on metallic colors and effect finishes. The MA-5 QC can identify color defects early in the manufacturing process - on the automotive production floor, in the lab and in the field - to avoid unnecessary rework and speed up time to market.

Featuring strategically placed optics at the tip and position indicator lights, MA-5 QC is 60% faster, 50% lighter, and 40% more compact than any other five-angle device on the market to measure curved surfaces like rear bumpers, door handles, and vehicle mirror bodies. It captures measurements in less than 2.5 seconds and delivers >95% repeatability within 0.16ΔdE when tested on 196 samples that included solid, metallic, and pearlescent effects. It can even be programmed to collect multiple data points quickly for automated jobs.

The intuitive touch screen data display provides green and red pass/fail tolerance lights and a first-to-market on-screen temperature preview to gauge whether sample temperature is affecting color data. When combined with EFX QC software, the MA-5 QC can analyze data with ease.



Learn More About the MA Family

To learn more about measuring special effects with our multi-angle devices, browse the resources, below.

To request a demo, see additional specifications, or ask questions about which MA device is best for your needs, get in touch to speak with a Color Expert.

In this free 10-minute webinar, you will learn why a multi-angle is the ideal spectrophotometer to measure special effect surfaces, like metallic and pearlescent.

Special effects are tricky to control because our perception can change based on the type of light and angle of reflection. Learn how the MA-5 QC can help.

With the ability to characterize color, sparkle, and coarseness, the new MA-T Family can help manufacturers control effect finishes.
