Model #: EO3PAINT
i1 Paint Handheld Spectrophotometer
For Retail Color Measurement on Common Samples
Quality spectrophotometer for color matching common paint samples
i1 Paint is a cost-effective handheld spectrophotometer for use at retail paint counters. It allows associates to quickly capture quality readings in less than one second on an 8mm portion of a sample like fan deck cards and painted items.
i1 Paint integrates with ColorDesigner PLUS paint software to quickly formulate and store custom paint recipes. Compared to visual color matching, a custom paint match done with i1 Paint will save up to 30 minutes per color match, reduce mismatched paints, and decrease waste.
Benefits:
- Achieves quality color matches with 31-point spectral resolution
- Facilitates one-hand operation with a portable, lightweight design
- Offers simple targeting for samples with a modern instrument housing design
- Triggers measurements from the device as well as ColorDesigner PLUS paint software
- Eliminates unnecessary power supply cords with a single USB cable
Specifications
| Aperture | 8 mm (0.31") |
|---|---|
| Communication Interface | USB 1.1 |
| Dimensions (length, width, height) | 162 mm x 69 mm x 64 mm (6.4” x 2.7” x 2.5”) |
| Humidity | 30 to 85% RH (non-condensing) |
| Illumination Spot Size | 12 mm (0.47") |
| Image Contact During Measurements | Contact |
| Instrument Display | No display |
| Inter-Instrument Agreement | 0.4 ∆E00* average |
| Light Source | Full spectrum LED |
| Measurement Geometry | 45°:0° |
| Operating Temperature Range | 10°C to 35°C 50°F to 95°F |
| Photometric Resolution | 10 nm intervals |
| Short Term Repeatability - White | 0.1 ∆E94* |
| Software Development Kit | Yes |
| Spectral Analyzer | i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array |
| Spectral Range | 400 -700 nm @ 10 nm |
| Spectral Reporting | 400 -700 nm @ 10 nm |
| Status Panel | Multi-color LED |
| Storage Temperature Range | -20° to 50°C -4° to 122°F |
| Unit Color | Black/Silver |
| Voltage | Power over USB |
| Warranty | 12 months |
| Weight | 285 g (10.1 oz) |
| What's Included? | i1 Paint spectrophotometer, calibration plate, USB cable |
Featured Training
Online Training / eLearning: Zobacz wszystkie szkoleniaMoże ci się spodobać również

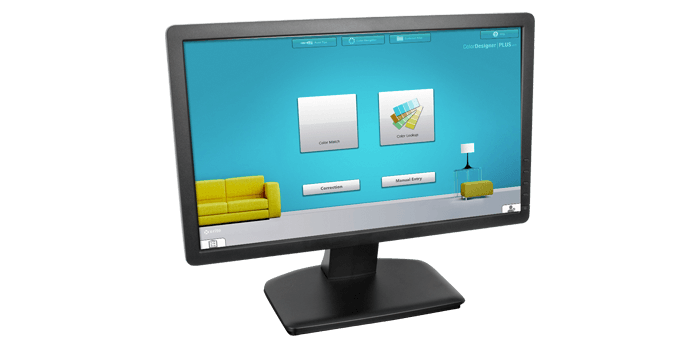

Do recepturowania barw farb detalicznych w punkcie sprzedaży
