Model #: ci52

Ci52

For Consistent Tethered QC Measurement

The Ci52 is an affordable, versatile sphere spectrophotometer for consistent measurement of color and appearance for a wide range of materials, ideal for quality control applications.

Versatile color measurement for quality control

Looking for a fast, affordable quality control tool to monitor batch-to-batch variations and inconsistencies between customer specifications and production output? Need a way to speed up the creation and approval of samples?


The Ci52 is a versatile instrument for consistent measurement of a wide variety of samples in a range of materials, sizes, shapes, textures, and opacity levels. It enables simultaneous measurement of both color and appearance to enhance accuracy in measuring paint and textile samples. It can be used as a tethered handheld device or mounted for small footprint benchtop use. A NetProfiler3-enabled system, it ensures consistent, precise performance.

Benefits:

  • Large target window for ease of measuring larger objects or samples.
  • Easy to operate. Its ‘close and play’ operation, supported by an LED visual and audible status indicators are ideal for operators at all skill levels.
  • Fast, accurate reads with a measurement time of 2 seconds on standard flat samples and complex shapes.
  • Simultaneous measurement of both specular-included (color) and specular-excluded (appearance) to determine influence of specular components and deliver accurate color and appearance data.
  • On-board NetProfiler system optimizes instrument performance and allows for remote certification, ensuring the instrument is always accurate with up-to-date calibration. Delivers good inter-instrument agreement with other X-Rite color measurement instruments.
The 14mm target window in the Ci52 spectrophotometer is an added benefit, making it easier to capture color and appearance data from the larger objects and samples often used in quality control operations. Its remote foot pedal option is designed for convenient, hands-free operation.
Need More Information?
Get 20% off the Ci6x Series When You Trade-In Your Handheld Spectrophotometer

The portability and quality of the Ci62 and Ci64 provides an unparalleled flexibility and accuracy. Get the most precise and consistent sample measurement.

Specifications

Short Term Repeatability - White .05 ΔE*ab on white ceramic
Measurement Geometry d/8°
Inter-Instrument Agreement 0.20 ΔE*ab avg.
Illumination Spot Size 14mm
Lamp Life Approx. 500,000 measurements
Light Source Gas-filled tungsten lamp
Measurement Cycle Time ≈ 2 seconds
Measurement Spot 8mm
Measurement Time ≈ 2 seconds
Photometric Range 0 to 200%
Photometric Resolution 0.01%
Spectral Analyzer Blue-enhanced silicon photodiodes
Spectral Interval 10nm
Spectral Range 400nm-700nm
Spectral Reporting 10nm
Reflectance Aperture(s) 1
Humidity 5% to 85%, non-condensing
Operating Temperature Range 50° to 104°F (10° to 40°C)
Storage Temperature Range '-4° to 122°F (-20° to 50°C)
Dimensions (length, width, height) 21.3 cm 9.1 cm 10.9 cm
Weight 1.06 kg
Package Dimensions (length, width, height)  36cm, 30cm, 20cm
Shipped Weight '4kg
Communication Interface USB 2.0
Instrument Display Backlit Color Graphic LCD
Software Development Kit XDS4
Voltage
100-240VAC 50/60Hz,
12VDC @ 2.5A
Calibration White and Zero
Embedded NetProfiler Support Yes
NetProfiler Support Embedded

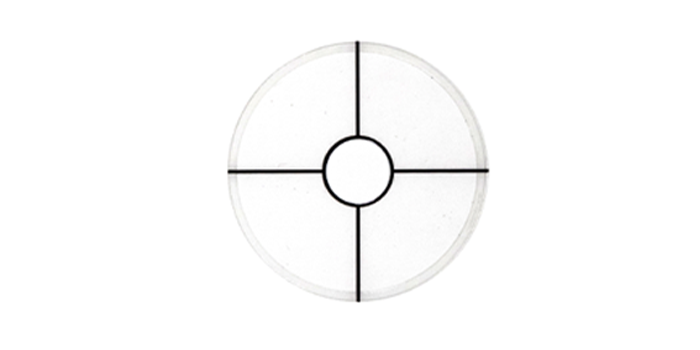

Sample Preview Targeting window
Transform Support Embedded
Warranty 12 months

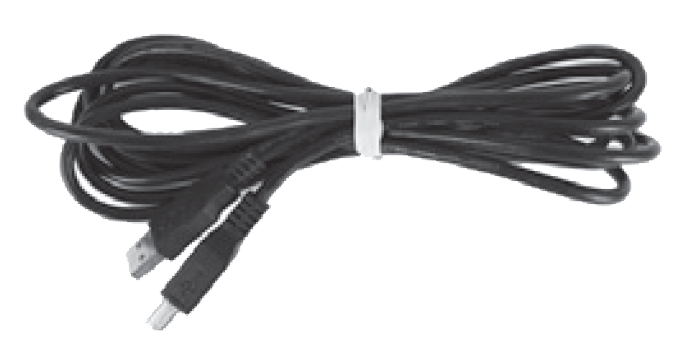

What's Included? Instrument with white calibration standard, black trap, green standard, manual(CD), AC adapter, USB cable

Może ci się spodobać również

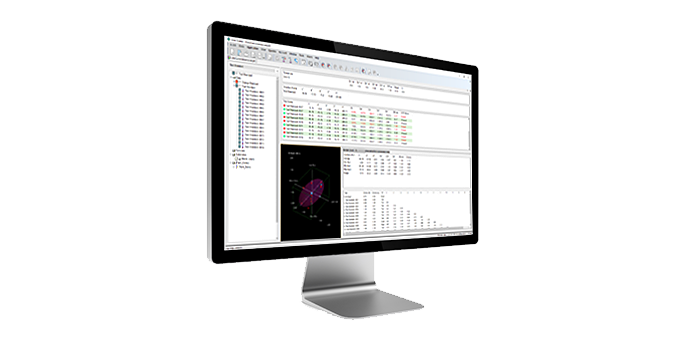

A large desktop computer showing X-Rite color analysis software color iqc.

Oprogramowanie Color iQC

Oprogramowanie do kontroli i zapewnienia jakości


Oprogramowanie Color iQC umożliwia specyfikatorom i dostawcom uzyskanie spójnego koloru w całym łańcuchu dostaw w różnych procesach przemysłowych, drukarskich i opakowaniowych.

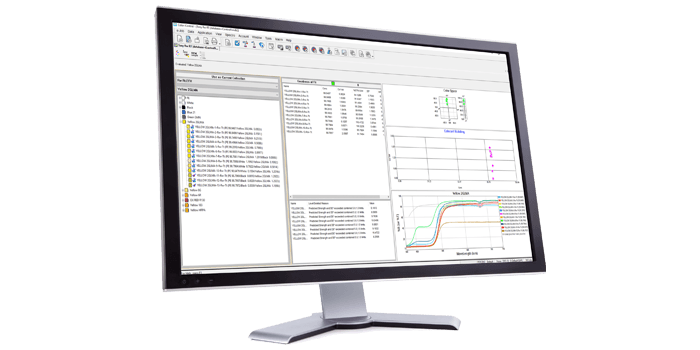

A large desktop computer showing X-Rite color analysis software Color imatch.

Oprogramowanie Color iMatch Formulation

Do recepturowania tworzyw sztucznych, powłok i tekstyliów


Dzięki oprogramowaniu do recepturowania i kontroli jakości Color iMatch, specjaliści od dopasowywania kolorów mogą przyspieszyć opracowywanie kolorów dzięki lepszej wydajności pierwszego dopasowania i mniejszej liczbie kroków korekcyjnych.

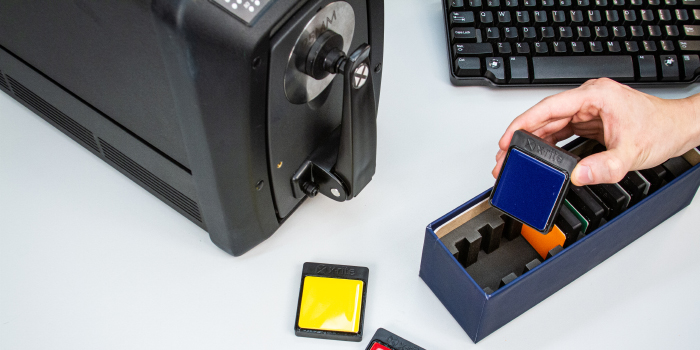

NetProfiler Software for Device Optimization
