Model #: 504
504
Out of Production

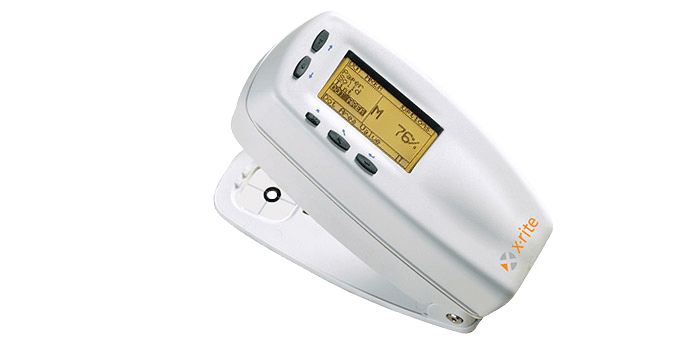

The X-Rite 504 spectrodensitometer is an entry-level easy-to-use instrument with a rugged design that is ideal for use in the press room during makeready and production.
Downloads
Software
Upgrade Comparison
| Aperture | 3.4 mm, 2 mm, 6 mm or 1.6 mm x 3.2 mm | |
|---|---|---|
| Battery | Ni-MH battery pack | |
| Communication Interface | RS-232 serial interface | |
| Density Range | 0.0 D – 2.5 D; 0 – 160 % R | |
| Density Standards | Status A, E, I, T, G, Tx, Ex, Hi-Fi | |
| Dimensions (length, width, height) | 19.7 cm x 7.6 cm x 8.1 cm | |
| Display Resolution | 1024x768 minimum | |
| Humidity | 30% to 85% RH (non condensing) | |
| Inter-Instrument Agreement | 0.01 D or 1 % | |
| Languages Supported | Chinese, English, French, German, Italian, Japanese, Portuguese, Spanish | |
| Light Source | Gas Pressure @ 2856° | |
| Measurement Conditions | M0, M2, or M3 | |
| Measurement Geometry | 45°/0° | |
| Measurement Time | approx. 1.4 sec | |
| Operating Temperature Range | 10°C to 35°C
50°F to 95°F |
|
| Short Term Repeatability - Density | 0.0 D – 2.0 D: ± 0.005 D*
2.0 D – 2.5 D: ± 0.01 D*
*Polarized Yellow, 0.0 D – 1.8 D: ± 0.01 D
Micro-Spot, 0.0 D – 1.8 D: ± 0.01 D |
|
| Software Development Kit | Yes | |
| Spectral Analyzer | DRS Technology, 24 point engine | |
| Warm Up Time | None | |
| Warranty | 1 year | |
| Weight | 1050 g
2.3 lbs. |
|
| What's Included? | CD PLUS software and Installation Guide | |
| Windows | Windows Vista, 7, 8, 10 | |
| Show More | ||
