短期繰り返し精度 - ホワイト |
Reflectance: 0.1 ∆E94* (D50,2°, mean of 10 measurements every 3 seconds on white) |
光学幾何条件 |
45°/0° ring illumination optics, ISO 13655:2009 |
器差 |
0.4 ∆E94* average, 1.0 ∆E94* max. (deviation from X-Rite manufacturing standard at a temperature of 23ºC (73.4ºF) on 12 BCRA tiles (D50, 2º)) |
照明スポットサイズ |
3.5 mm (0.14”) |
光源 |
Gas filled tungsten (illuminant type A) and UV LED |
測定条件 |
• UV included - ISO 13655:2009 measurement condition M0
• D50 - ISO 13655:2009 measurement condition M1
• UV excluded Filter - ISO 13655:2009 measurement condition M2 |
スキャニングモードにおける測定周波数 |
200 measurements per second |
最少の用紙の厚さ |
3 mm (0.12”) on backup board |
パッチサイズ |
Minimal Patch Size in Scanning Mode: 7 x 10 mm (0.28” x 0.39”) (Width x Height) with sensor ruler 10 x 10 mm (0.39” x 0.39”) (Width x Height) without sensor ruler |
分光範囲 |
10nm; Sampling interval 3.5nm |
分光システム |
i1® technology with built-in wavelengths check; Holographic diffraction grating with 128-pixel diode array |
分光範囲 |
380 - 730 nm |
分光レポート出力 |
380 ... 730 nm in 10 nm steps |
プロファイル形式 |
ICC |
測定アパーチャー |
Measurement aperture: 4.5 mm (0.18”) diameter (effective measurement aperture during scanning is depending on the patch size and measurement speed) |
本体カラー |
Silver/Black |
製品寸法(奥行/幅/高さ) |
i1Pro device: 155 mm x 66 mm x 67 mm (6.1” x 2.6” x 2.6”)
i1 Ruler: 337 mm x 102 mm (13.3” x 4.0”)
i1 Backup Board: 355 mm x 265 mm (14.0” x 10.4”) folded or 355 mm x 400 mm (14.0” x 15.7”) unfolded |
重量 |
i1Pro device: 245 g (8.6 oz) |
梱包サイズ(奥行/幅/高さ) |
13.7" x 6.1" x 17.0" / 348 mm x 155 mm x 434 mm |
出荷時重量 |
9.942 lbs / 4.510 kg |
インターフェース |
USB 1.1 |
対象用途 |
Intermediate to Advanced |
使用言語 |
Chinese (Simplified), English, French, German, Italian, Japanese, Korean, Portuguese, Spanish |
ソフトウェアモード |
Basic & Advanced |
使用環境 |
Choose between a ‘basic’, wizard-driven interface or an ‘advanced’, user-driven interface for highest level professional results |
キャリブレーション |
Manual on external ceramic white reference |
測定バッキング |
white, ISO 13655:2009; for measurements on backup board |
モバイル装置との互換性 |
iOS |
蛍光増白剤補正(OBC) |
Optical Brightener Compensation (OBC) with i1Profiler software |
スキャナー ターゲットのサポート |
• ColorChecker Classic and ColorChecker Digital SG (X-Rite)
• Reflective IT 8.7/2 (X-Rite, LaserSoft and Wolf Faust)
• Transmissive 4x5 and 35mm IT 8.7/1 (X-Rite, Kodak, LaserSoft and Wolf Faust) |
製品保証 |
Twelve (12) months from the date of sale, unless different local regulations apply. Product registration is required to receive X-Rite technical support during the warranty period. Registration can occur directly through the software, on our website, or via phone. Users are encouraged to register their product within the first 30 days of use. |
同梱物 |

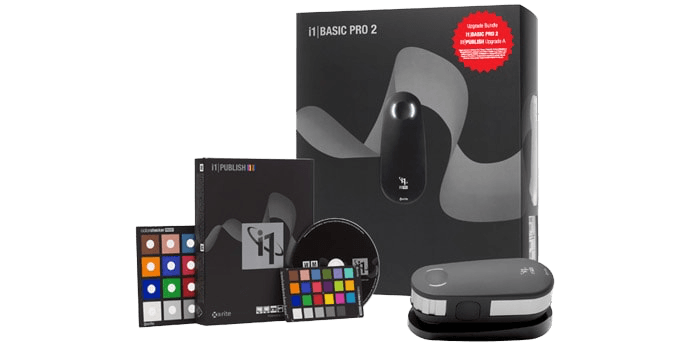

i1Pro 2 spectrophotometer (measurement device), calibration plate, ambient light measurement head, monitor holder, positioning target, scanning ruler, backup board, USB cable, i1Profiler v1.x software for monitors, projectors, scanners and RGB/CMYK+ printers, ColorChecker Camera Calibration software, PANTONE Color Manager software, ColorChecker Classic target [mini], ColorChecker Proof target and soft-sided storage case. Free ColorTRUE mobile app download from iTunes® App Store. |
Macintosh |
MacOS X 10.13x, 10.14x or 10.15x (with latest upgrades installed) |
Windows |
Windows 7, 8, 8.1, 10 (with latest Service Pack installed) |
使用可能なディスク領域 |
2GB |
接続方法 |
Powered USB port"Powered USB port
WINDOWS: Network adaptor installed and driver loaded" |
ディスプレイの解像度 |
1024x768 pixels or higher |
インターネット接続 |
Required for software install, download and automatic update |
メモリ |
2GB |
使用可能なモニター/ディスプレイ台数 |
4 |
光学ドライブ |
DVD Drive or Internet Connection |
プロセッサ |
MAC: Intel® Core 2 Duo CPU or better; WINDOWS: Intel® Core 2 Duo or AMD Athlon™ XP or better |
セキュリティ設定 |
User must have Administrator rights to install and uninstall the application |
ビデオカード |
MAC: Latest drivers for video card installed; WINDOWS: Latest drivers for video card installed, dual display support requires either 2 video cards or a dual head video card that supports dual video LUTs being loaded |
iOS 装置との互換性 |
Compatible with Free ColorTRUE Mobile App:
• iPad 2, 3rd gen, 4th gen, Air, Mini, & Mini 2nd gen running iOS 7.x or later
• iPhone 4, 4S, 5, 5c, & 5s running iOS 7.x or later
• iPod Touch running iOS 7.x or later |
